Sku:
VXKA-MSA-097-SH-DG-01

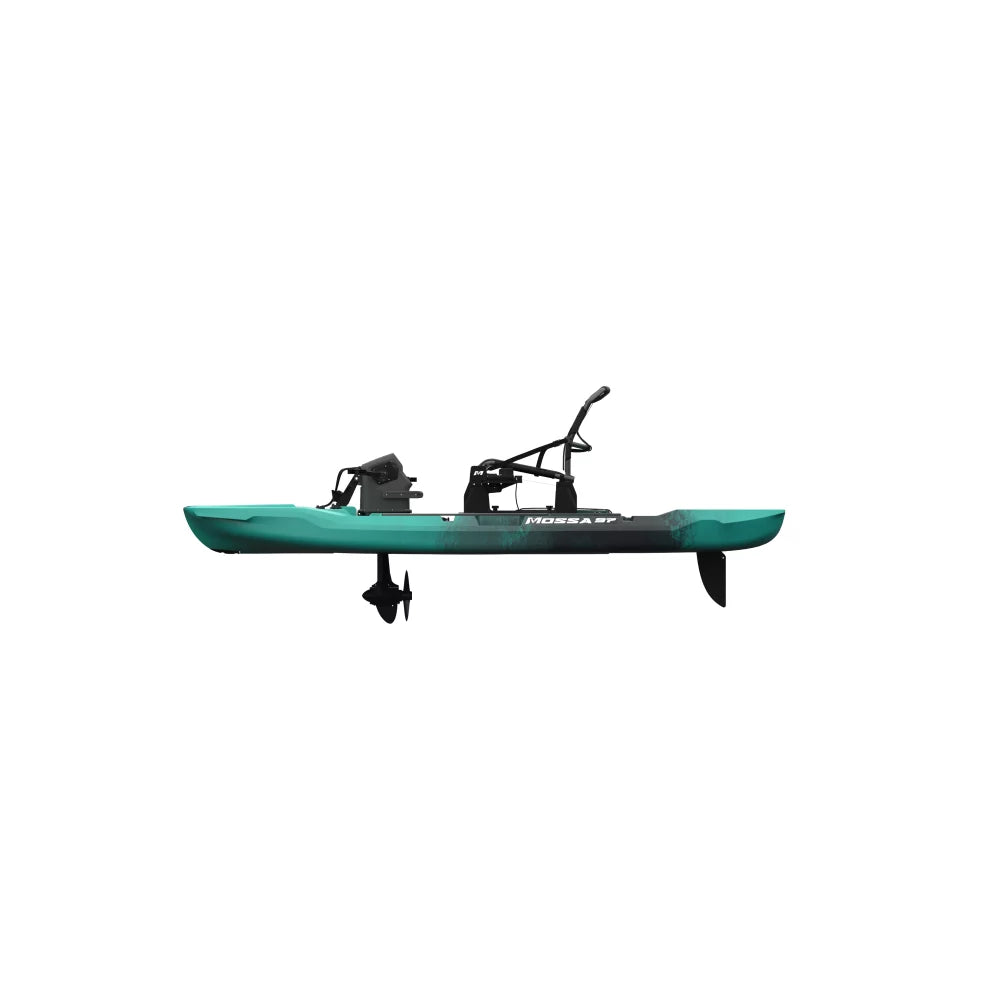

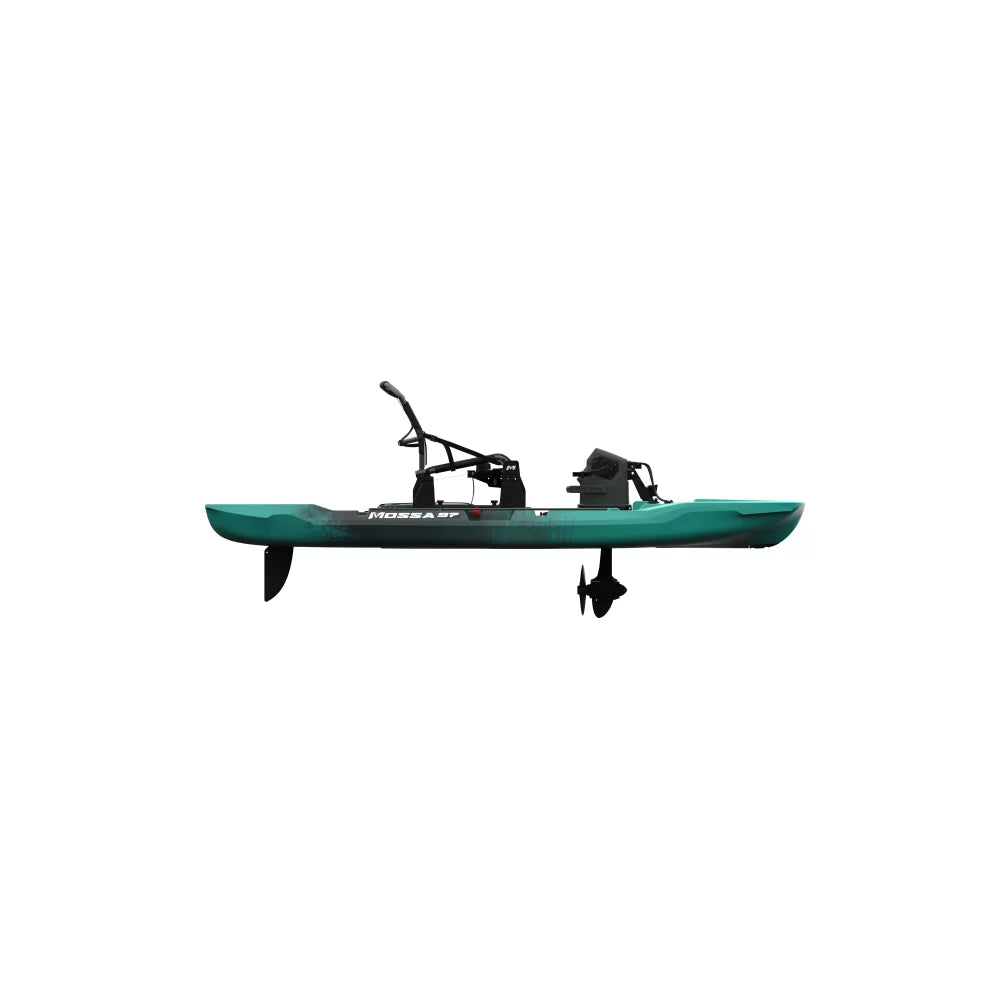

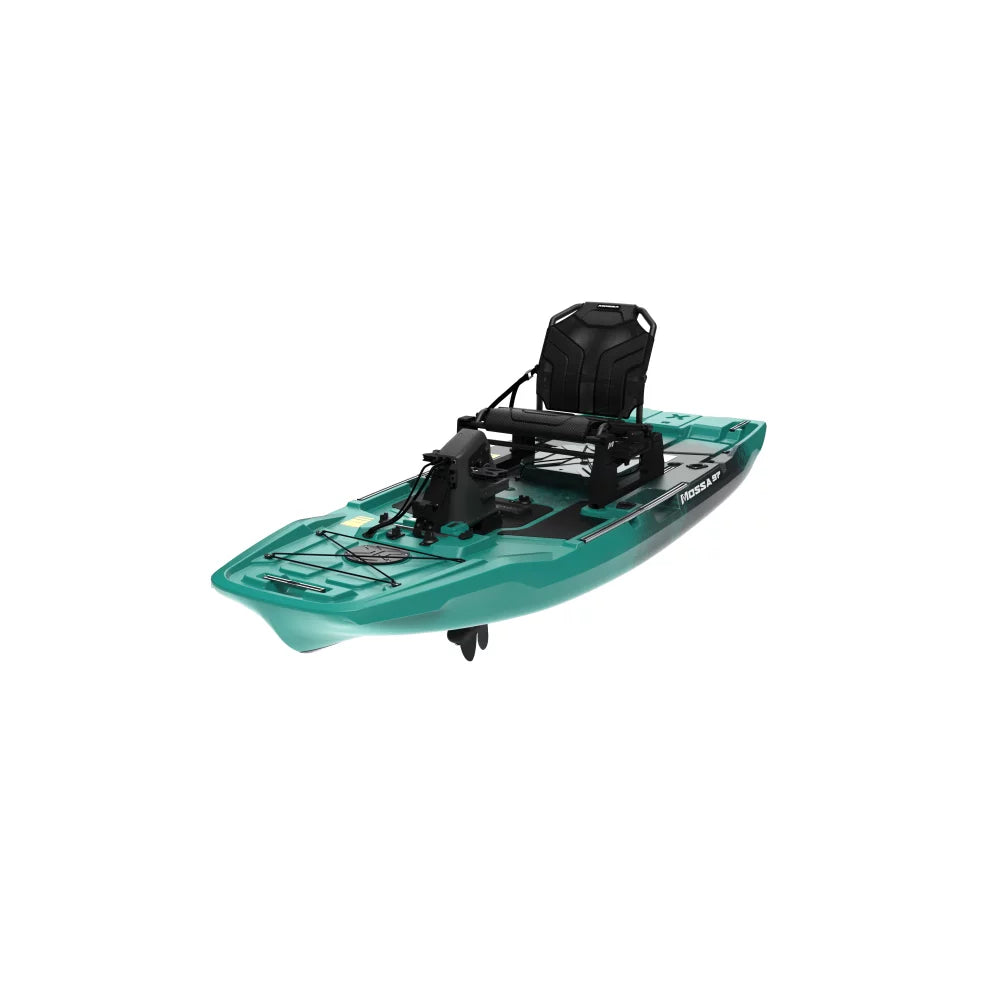

VoyaX MOSSA 97 @XPDL Apex Green Kayak
Regular price
$2,999.00
Regular price
$3,499.00
Sale price
$2,999.00
Unit price
per
Shipping calculated at checkout.
Vendor:
VoyaX
Out of stock
Description
Description
The MOSSA 97 brings the core XPDL experience to a shorter, wider platform designed for frequent solo outings and calm-water fishing. Measuring 9'7" long and 40.5" wide, it balances a compact footprint with stability, giving anglers a confident platform for casting, working shorelines, and maneuvering around docks and protected waters.
XPDL combines Assist, Electric, and Manual modes so anglers can choose how much effort they want to put in. SpotHold helps counter drift while fishing, and infinite 360° steering supports tight turns, S-turns, and rotation in place. Track Cruise, Spot Cruise, and Course Lock provide assisted navigation for following a preset path, moving toward saved fishing spots, and maintaining a heading.
With a 66 lb hull, 400 lb capacity, compact 9'7" length, and 86.9 inches of wraparound tracks, the MOSSA 97 is suited to anglers who value easier transport and storage, flexible rigging, and premium control in a smaller package. It is best matched to lakes, ponds, sheltered bays, marinas, and protected inshore waters rather than offshore waters, strong currents, or long-distance travel.
| Operating Environment | Supported Waters | Freshwater and saltwater* *After use in saltwater, rinse with fresh water and allow to dry to help maintain long-term performance. |
| Minimum Water Depth* | XPDL raised: >3.2 in | >8.0 cm XPDL deployed: >16.4 in | >41.7 cm *Tested at a usable payload of 187.4 lb | 85 kg. | |
| Storage Environment | 14°F to 122°F | -10°C to 50°C; <70% RH | |
| Operating Temperature | 32°F to 113°F | 0°C to 45°C | |

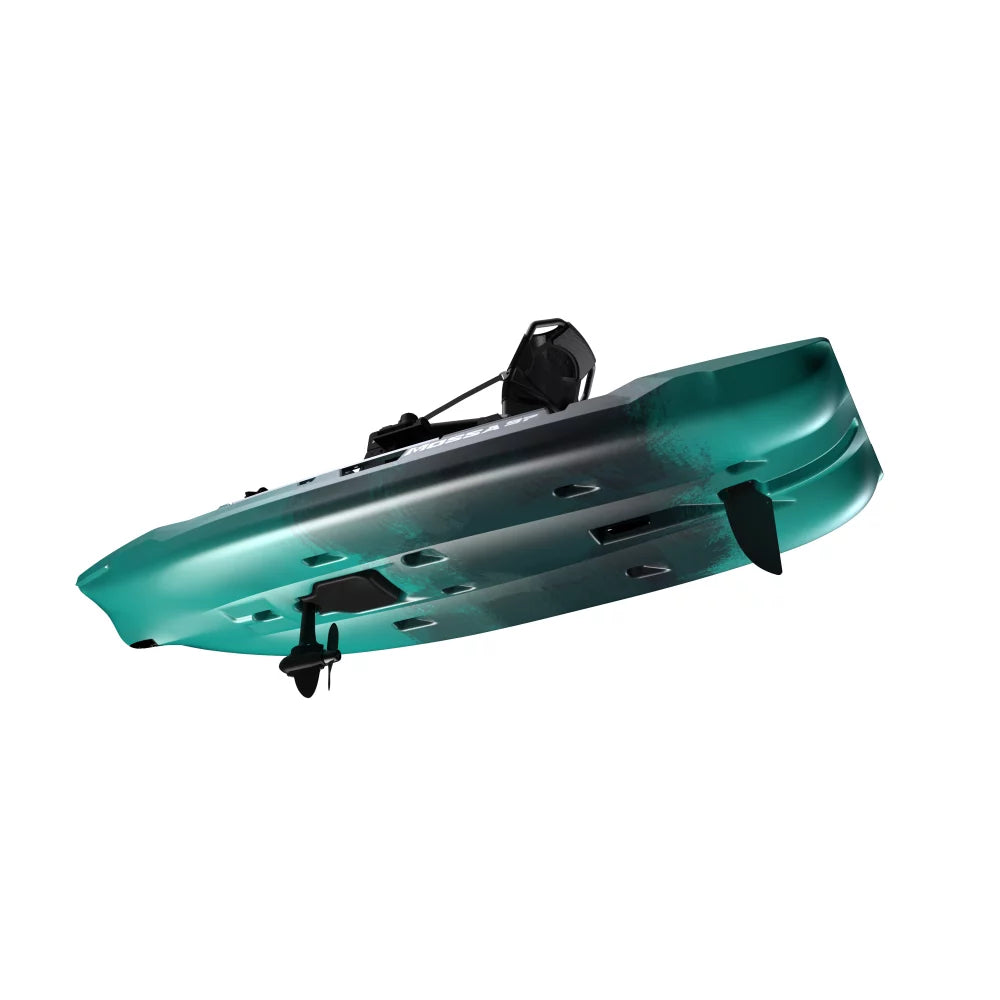

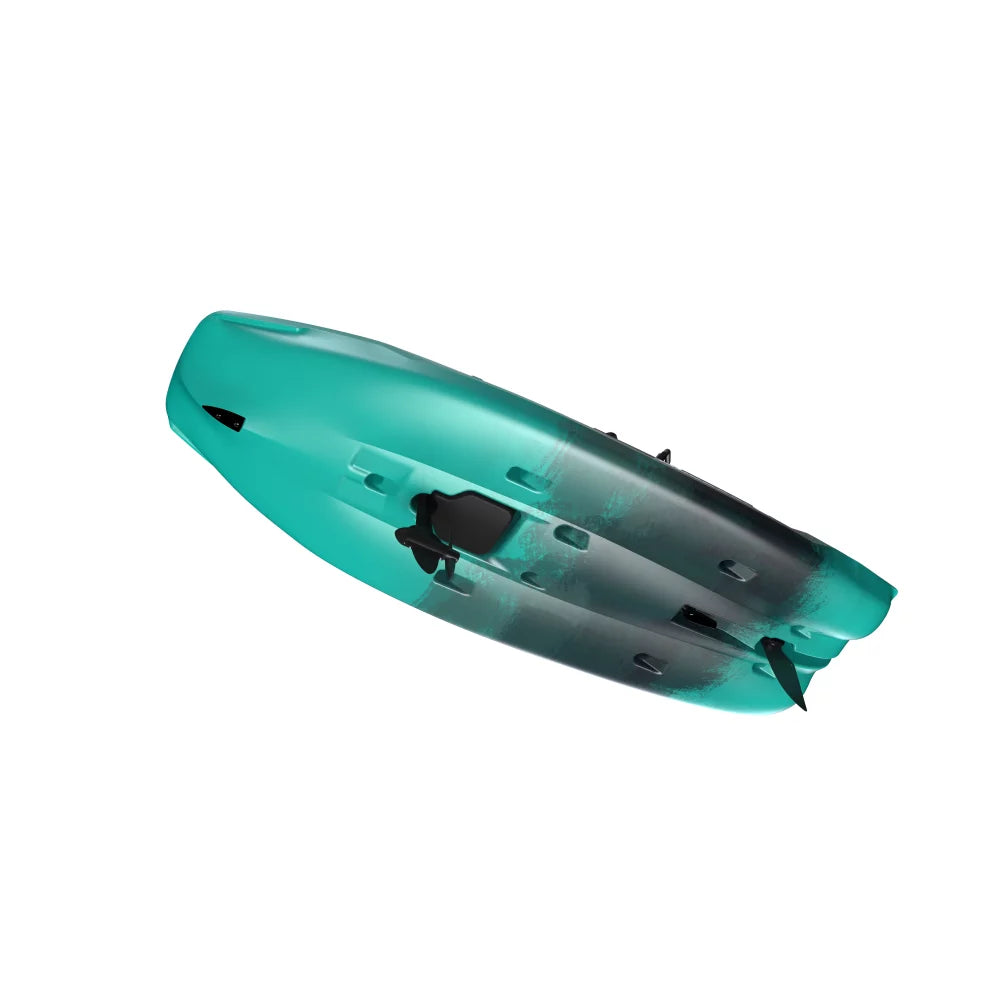

| Hull | Hull Material | Rotomolded high-density polyethylene (HDPE) |
| Overall Length | 9 ft 7 in | 292 cm | |
| Overall Width | 40.5 in | 103 cm | |
| Hull Height (excluding seat module and drive system) | 9.5 in | 24.1 cm | |
| Hull Weight (bare hull; accessories excluded) | 66.1 lb | 30 kg | |
| Fully Rigged Weight — Standard Configuration | 132.3 lb | 60 kg | |
| Recommended Occupant Weight* | 255 lb | 115.6 kg *Maximum recommended occupant weight in the MOSSA 97 standard configuration. | |
| Maximum Capacity | 400 lb | 181.4 kg | |
| Usable Payload Capacity* | 267.6 lb | 121.4 kg *Remaining capacity for occupants, gear, and pets after subtracting the fully assembled kayak weight. | |
| Hull Draft — Unloaded | 1.7 in | 4.4 cm | |
| Hull Draft — Recommended Operating Load | 3.2 in | 8.0 cm *Tested at a usable payload of 187.4 lb | 85 kg. | |
| Carry Handles | 3 total: 1 bow-deck carry handle plus 2 stern-deck carry handles | |
| Impact Protection | Yes — standard keel guard plus XPDL breakaway-knob protection | |
| Corrosion Protection | Yes — 2 integrated sacrificial anodes | |
| Deck | Footwell Dimensions (L × W × H)* | 18.5 × 31.9 in | 47 × 81 cm *The source contains a conflicting geometry note; confirm the minimum/maximum width and whether height should be listed. |
| Flush-Mount Rod Holders | 4 | |
| T-Track System | Total track length: 142.2 in | 360.8 cm Accessory-mounting track length: 87.0 in | 220.6 cm • Bow-handle track: 8.0 in | 20.2 cm • Stern-handle tracks: 8.0 in | 20.2 cm each; 16.0 in | 40.4 cm total • Side T-tracks: 31.5 in | 80 cm per side; 63.0 in | 160 cm total • Under-seat slide rails: 27.6 in | 70.1 cm per side; 55.2 in | 140.2 cm total | |
| Storage | Bow Storage Volume | Not provided |
| Bow Storage Tub Volume | Not provided | |
| Foredeck Area | Not provided | |
| Center Dry Storage Volume | 2.5 gal | 9.5 L | |
| Rear Tankwell Dimensions (L × W) | 18.9 × 33.5 in | 48 × 85 cm *Recessed rear area for a storage crate, cooler, and fishing gear. | |

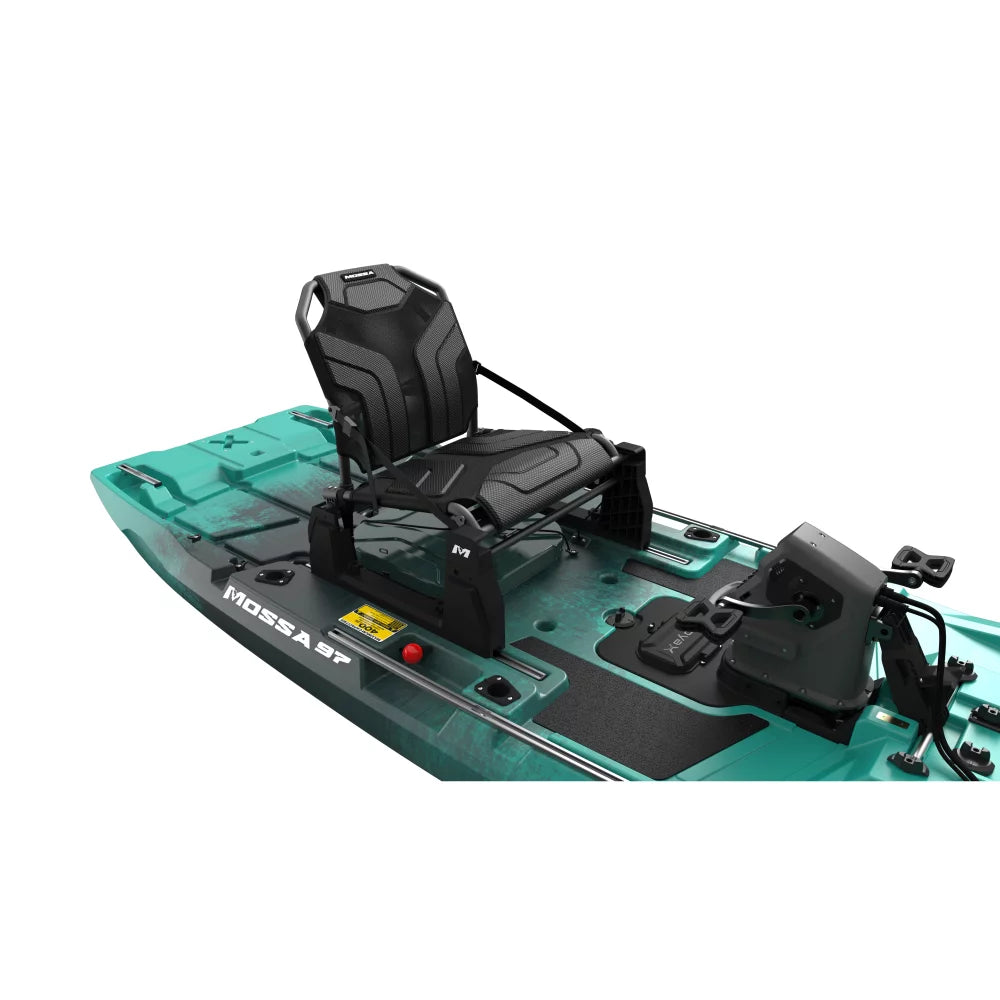

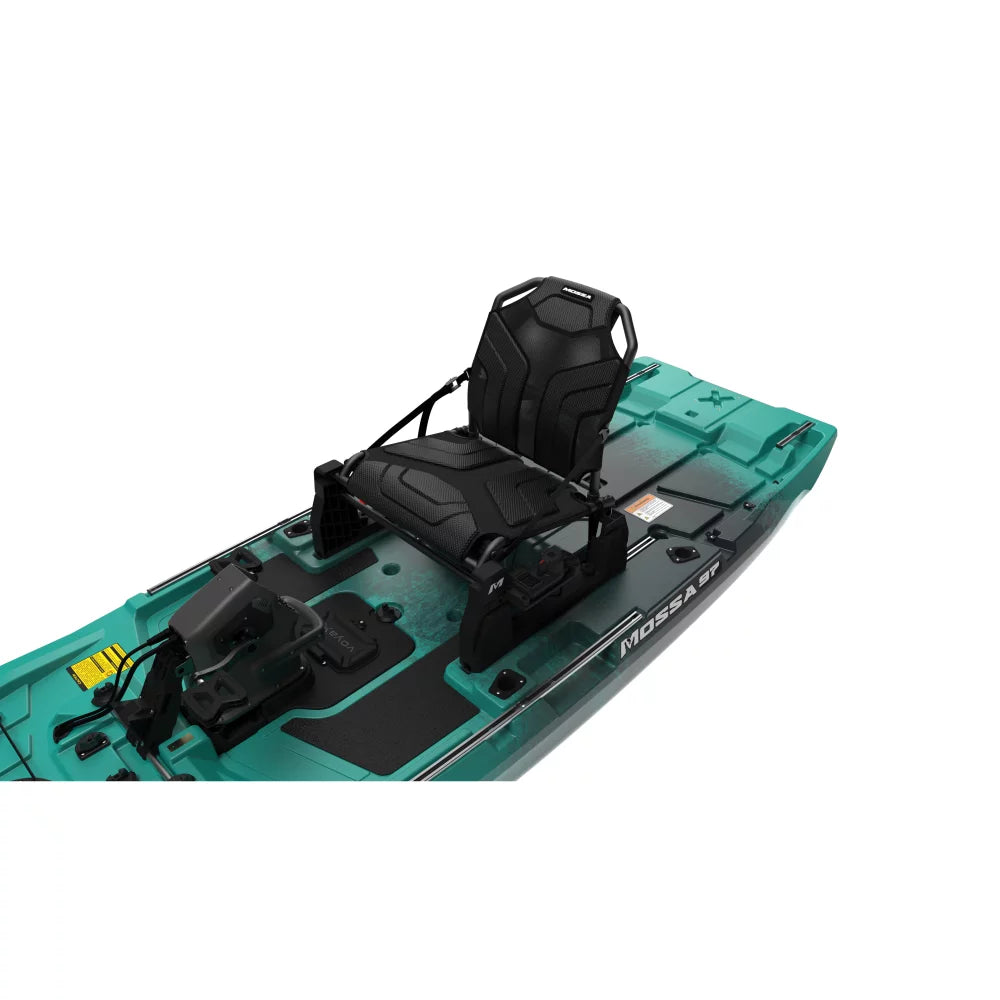

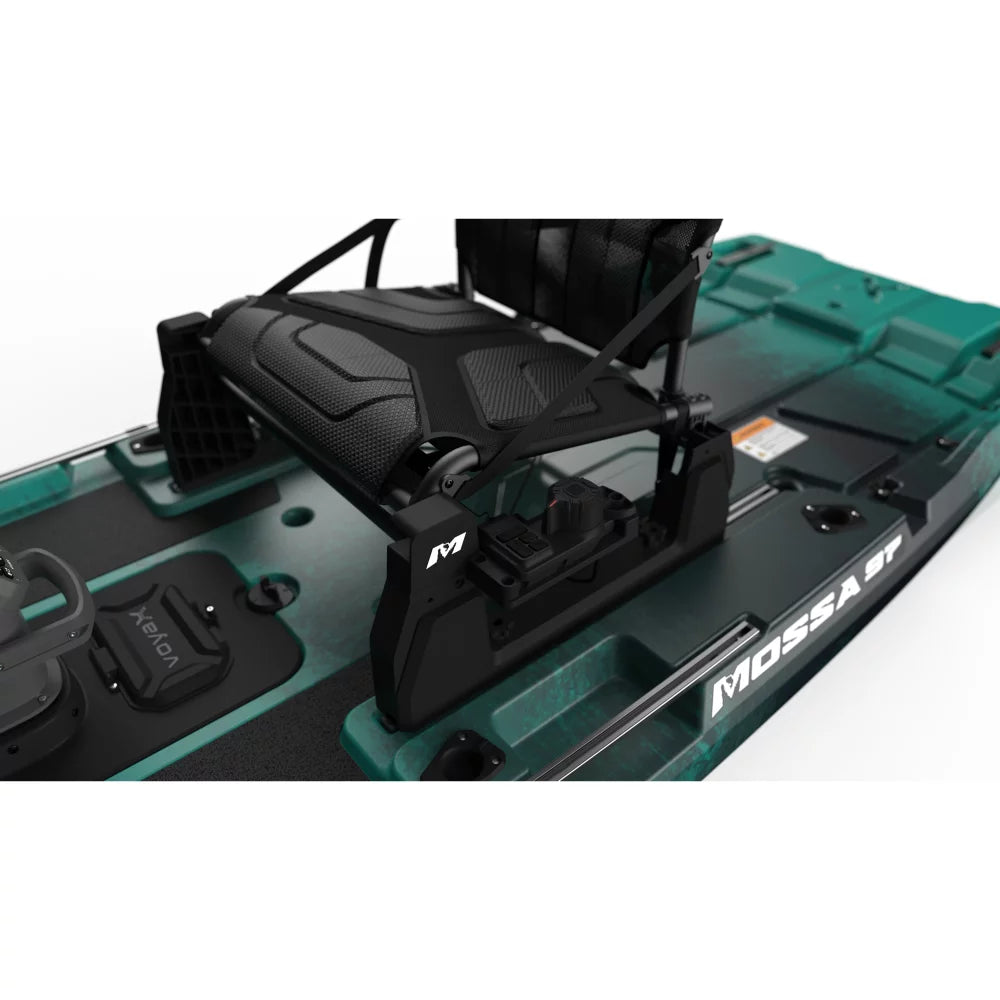

| Seat | Backrest Height | 20.1 in | 51 cm |
| Seat Dimensions (L × W) | 18.1 × 20.7 in | 46 × 52.5 cm | |
| Seat Height Adjustment | 1. Front thigh-support height: 9.4 in | 24 cm 2. Rear seat height — high: 7.5 in | 19.0 cm 3. Rear seat height — low: 5.7 in | 14.5 cm *Reclining adjustable seat; measured from the deck to the underside of the seat. | |
| Removable Seat Weight | 6.2 lb | 2.8 kg | |
| Maximum Seat Capacity | 255 lb | 115.7 kg | |
| Seat-to-Pedal Distance* | Minimum: 12.2 in | 31 cm Maximum: 24.4 in | 62 cm *Measured from the seat edge to the pedal center. Inch values were converted from the supplied metric values. | |
| Rudder | Rudder Material | 30% glass-fiber-reinforced nylon |
| Rudder Dimensions (L × W × H) | 15.2 × 5.7 × 0.6 in | 38.7 × 14.5 × 1.6 cm | |
| XPDL System | Propulsion System | Quick-release, center-mounted XPDL intelligent propulsion system |
| Drive Modes | Manual Mode, Assist Mode, Electric Mode, and Reverse Mode | |
| Drive Module Weight | 29 lb | 13 kg | |
| Installed XPDL Dimensions (L × W × H) | 20.5 × 17.4 × 32.8 in | 52.1 × 44.1 × 83.2 cm | |

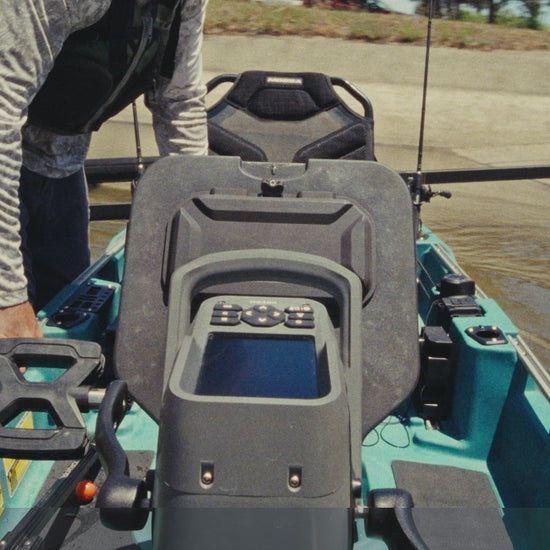

| Display | 5.0 in TFT LCD; 800 × 480 pixels | |
| Range — Single Battery* | Electric Mode (Level 10 | 5.6 mph): approx. 1 h 46 min / 8.3 miles Other test points: TBD | |
| Maximum Speed* | Electric Mode: up to 4.8 mph | 7.7 km/h Assist Mode: up to 5.3 mph | 8.5 km/h *Based on internal testing under ideal conditions. Actual speed may vary with payload, battery level, water conditions, wind, current, operating mode, and pedaling cadence. | |
| Ingress Protection Rating | IPX5 | |
| Connectivity | USB-A (USB 2.0) Wi-Fi (2.4 GHz; IEEE 802.11b/g; WPA2) Bluetooth 5.3 Low Energy (BLE) | |
| Supported Update Methods | USB (FAT32) and over-the-air (OTA) | |
| Steering & Control | Steering Range | 360° steering (continuous rotation) |
| Steering Motor Type | Brushless DC motor (BLDC) | |
| Steering Electrical Specifications | 48 V DC input Rated input: 48 W / 1 A Maximum input: 144 W / 3 A | |
| Motor-Drive Protection | Yes — drive lock and overtemperature protection sensor | |

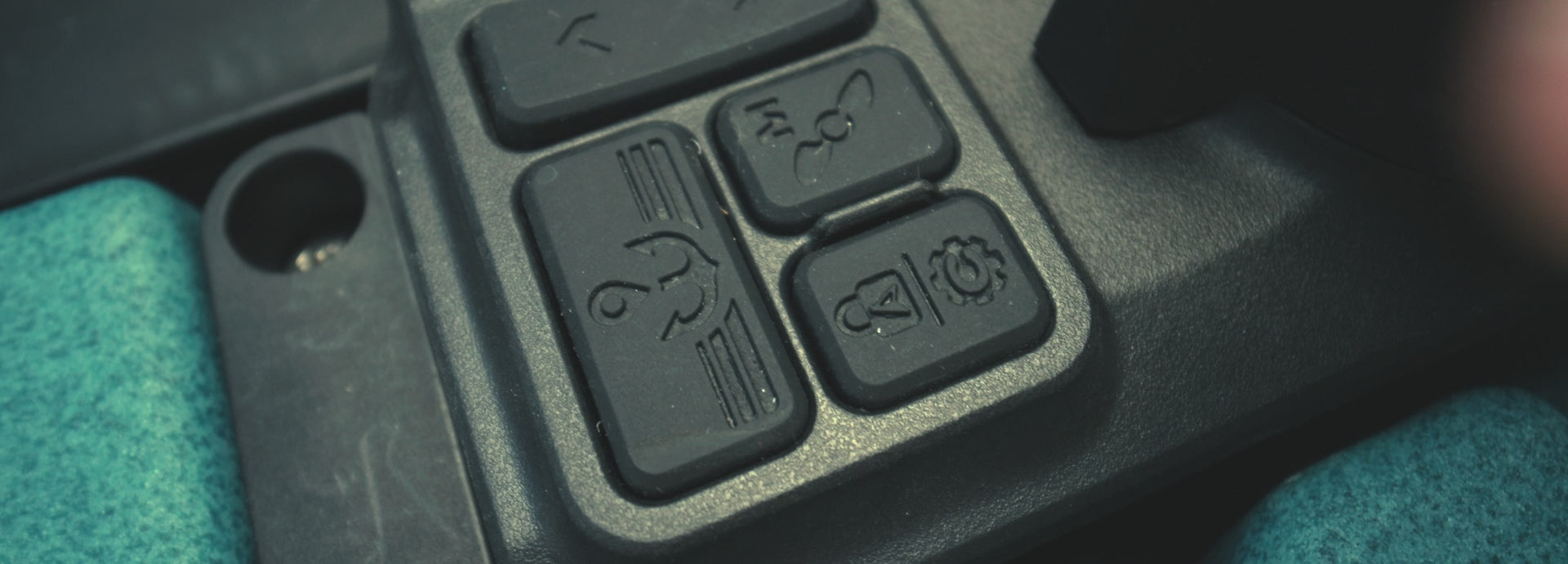

| Wired Control | Hand controller with 360° knob | |
| Wireless Control | Thumb remote (optional) | |
| Satellite Navigation | GPS | |
| Propulsion Motor | Motor Type | Brushless DC motor (BLDC) |
| Motor Electrical Specifications | 48 V DC Input: 350 W rated; 500 W maximum Output: 280 W rated; 380 W maximum | |
| Maximum Static Thrust | 36 lbf | 160 N | |
| Propeller | Material | 30% glass-fiber-reinforced nylon |
| Number of Blades | 2 | |
| Propeller Diameter | 9.8 in | 25 cm | |
| Geometric Pitch | 14.1 in | 35.7 cm *The theoretical forward distance traveled per propeller revolution. | |

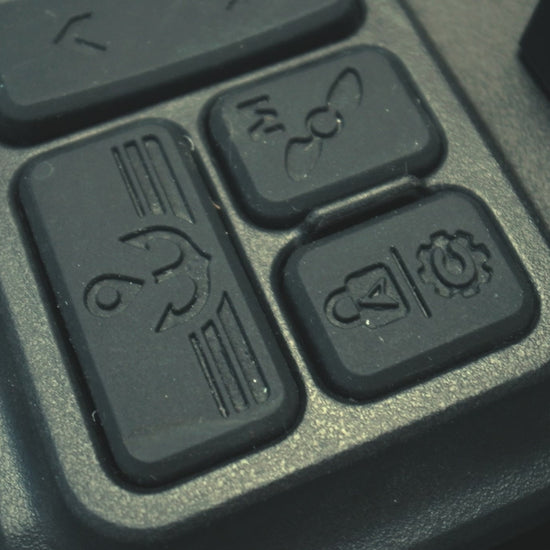

| Hand Controller | Controller Dimensions (L × W × H) | 5.9 × 2.76 × 2.64 in | 15 × 7 × 6.7 cm |
| Weight 1 (cable included; safety cutoff switch excluded) | 11.3 oz | 320 g | |
| Weight 2 (cable included; safety cutoff switch excluded) | 12.3 oz | 350 g | |
| Mechanical Steering Range | 360° steering knob | |
| Ingress Protection Rating | IPX5 | |
| Input Latency | 50 ms | |
| Thumb Remote (Optional) | Control-Signal Update Rate | 10 Hz |
| Ingress Protection Rating | IPX5 | |
| Battery Capacity* | 210 mAh *Approx. ±111 h of continuous use. Actual life may vary with use, storage, and environmental conditions. | |
| Remote Weight | 0.64 oz | 18.16 g | |
| Dimensions (L × W × H) | 2.2 × 1.3 × 0.87 in | 5.6 × 3.2 × 2.2 cm | |
| Control Latency | 120 ms | |
| Maximum Transmission Distance | 32 ft | 10 m | |
| Wireless Certifications | FCC ID / ISED / CE RED / UKCA / RCM | |
| Battery Type | 1 × CR2032 (3 V DC lithium coin cell) | |
| Connectivity | Bluetooth 5.0 | |
| SpotHold & Spot Cruise | Minimum Operational GPS Requirement | 12 or more satellites |
| Recommended GPS Requirement | 20 or more satellites | |
| SpotHold Maximum Positioning Deviation* | ±2.6–4.9 ft | ±0.8–1.5 m *Accuracy depends on satellite signal quality and environmental interference. Keep away from metal bridges, high-voltage power sources, and other interference. Stable GPS operation requires at least 12 satellites. | |
| Spot Cruise Drive Mode | Electric Mode (Levels 1–10) | |
| Smart Battery System | Battery Type | Lithium-ion |
| Voltage | 48 V | |
| Rated Capacity | 15 Ah | |
| Rated Energy | 720 Wh | |
| Battery Weight | 13.2 lb | 6.0 kg | |
| Battery Dimensions (L × W × H) | 10.7 × 7.3 × 4.9 in | 27.1 × 18.5 × 12.4 cm | |
| Operating Temperature | 32°F to 113°F | 0°C to 45°C | |
| Storage Temperature & Humidity | -22°F to 140°F; 10% to 90% RH | |
| Recommended Storage State of Charge | 40%–60% | |
| Ingress Protection Rating* | IPX6 *The power-connector sealing cap must be installed correctly. | |
| Cycle-Life / Warranty Benchmark* | 2 years or 1,000 full cycles *Battery warranty is limited to 1,000 cycles or 24 months, whichever comes first. | |
| AC Input | 100–240 V AC; 50/60 Hz; 130 W | |
| DC Output | 54 V DC; 2.5 A | |
| Rated Power | 130 W | |
| Charging Time — Single Battery | 6 h | |
| Charging Temperature Range | 32°F to 113°F | 0°C to 45°C | |
| Charging Protection | Yes | |
| VoyaX App | Mobile App | VoyaX App |
| Minimum System Requirements | iOS 13 or later; Android 10 or later | |
| Connection Requirements | Bluetooth and Wi-Fi required | |
| Fish Finder System (Optional) | Transducer System | Dual Spectrum CHIRP transom-mount transducer with temperature sensing |
| Weight | 0.62 lb | 280 g | |
| Sonar Operating Frequencies | 200 kHz | 440 kHz | |
| Maximum Detection Depth | Up to 100 m | 328 ft | |
| Sonar Beam Coverage & Angles | 200 kHz: 16° conical beam 440 kHz: 2° × 47° fan-shaped beam | |
| Ingress Protection Rating | IPX7 | |
| Transducer Guard | No | |
| Safety Controls & Protection | Emergency Button | Yes — metal button behind the pedal display |
| XPDL Lift Detection* | Yes — integrated into the XPDL *Automatically disconnects when the XPDL is lifted. | |
| Safety Cutoff Lanyard Switch | Yes — on the right side of the 360° hand controller | |
| Self-Check & Diagnostics | System-level self-check with real-time system warning-code reporting when connected to the VoyaX App |
| Length | 9' 7" |
| Width | 40.5" |
| Height | 9.5" |
| Hull Weight | 66 lbs |
| Battery Weight | 13 lbs |
| XPDL Weight | 29 lbs |
| Rigged Weight | 132 lbs, with seat, drive and battery |
| Capacity | 400 lbs |
| Bow Storage Volume | — |
| Bow Storage Tub Volume | — |
| XPDL Dry Storage | 2.5 gal |
| Wraparound Tracks | 87" |
| Rear Tankwell Dimensions | 18.9'' × 33.5'' |
| Top Speed （Assist） | 5.3 MPH |
| Foredeck Area | 16.5'' × 18.5'' |
